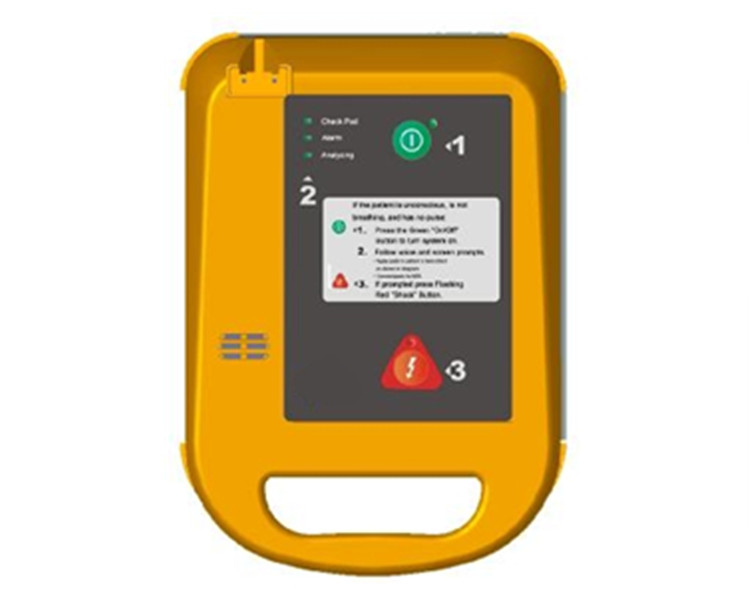

Medical Portable AED7000 Defibrillator

Item No.: IFA-ITC059042
Location: China
Min. Order: 1 Piece
AED7000 is a portable model, which can be equipped at home, in public places, or in the hospitals. It’s easy and convenient to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient’s ECG data, and then takes corresponding defibrillation energy level according to patient’s current situation, which has greatly improved success rate, and maximum reduced damage to patient’s heart.

Features:

  1. Three-step defibrillation process

  2. Two-button operation

  3. Extensive voice and visual prompts for the operator

  4. Biphasic energy output

  5. Lock-out protection to prevent inadvertent defibrillation

  6. Continuous event recording for reporting each use to a printer or computer

  7. Weekly self-test to ensure readiness


Specification:

Defibrillator

Output

Biphasic Truncated Exponential

Energy Sequence

150, 150, 200J

Charge Time

8 sec. to 150J; 10 sec. to 200J (New Battery)

Analysis Time

9 sec.

The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery



Less than 30 seconds

The maximum time from the initiation of rhythm analysis to readiness for discharge after 6 shocks

Less than 35 seconds

The maximum time from initially switching power on to readiness for discharge

Less than 25 seconds

Audible Prompts

22 audible prompts

Visual Prompts

LED prompts

Controls

Two buttons-ON/Off, Shock

Output Energy Accuracy

±15% into any impedance from 25 to 175Ω

The Maximum Voltage

1200±50V

Output disabled when the patient impedance is outside limits

20Ωto 200Ω



Battery

Part No.

CR123A-4*2

Non-rechargeable

12V DC, 2.8Ah

Capacity

At 150 Joules



Physical

Dimensions

303*216*89mm

Weight

2.0kg

Operating Temperature

0°C to 40°C



Operating Humidity

Relative humidity between 30% and 95% (non-condensing)

Storage Temperature (without battery)

-20°C to 55°C

Storage Humidity (without battery)

Up to 95% (non-condensing)
